Giantz 60A MPPT Solar Charge Controller, 12V/24V/36V/48V, Iron Case, LCD, RS485, Auto Battery Regulator

Power up your solar setup with the Giantz 60A MPPT Solar Charge Controller. Featuring advanced MPPT technology for up to 99% tracking and 97% charging efficiency, it protects against overcharge, overheating, and more with multi-stage charging for optimal battery health. The backlit LCD and intuitive design ensure easy use, while the iron case heat sink and cooling fan deliver efficient heat management. With auto voltage detection, wide battery compatibility, and versatile communication ports, Giantz delivers reliable, intelligent charging for every application.

Features

• Creative MPPT technology for up to 99% tracking accuracy
• Automatic 12V/24V/36V/48V voltage detection
• Multi-stage charging for battery health

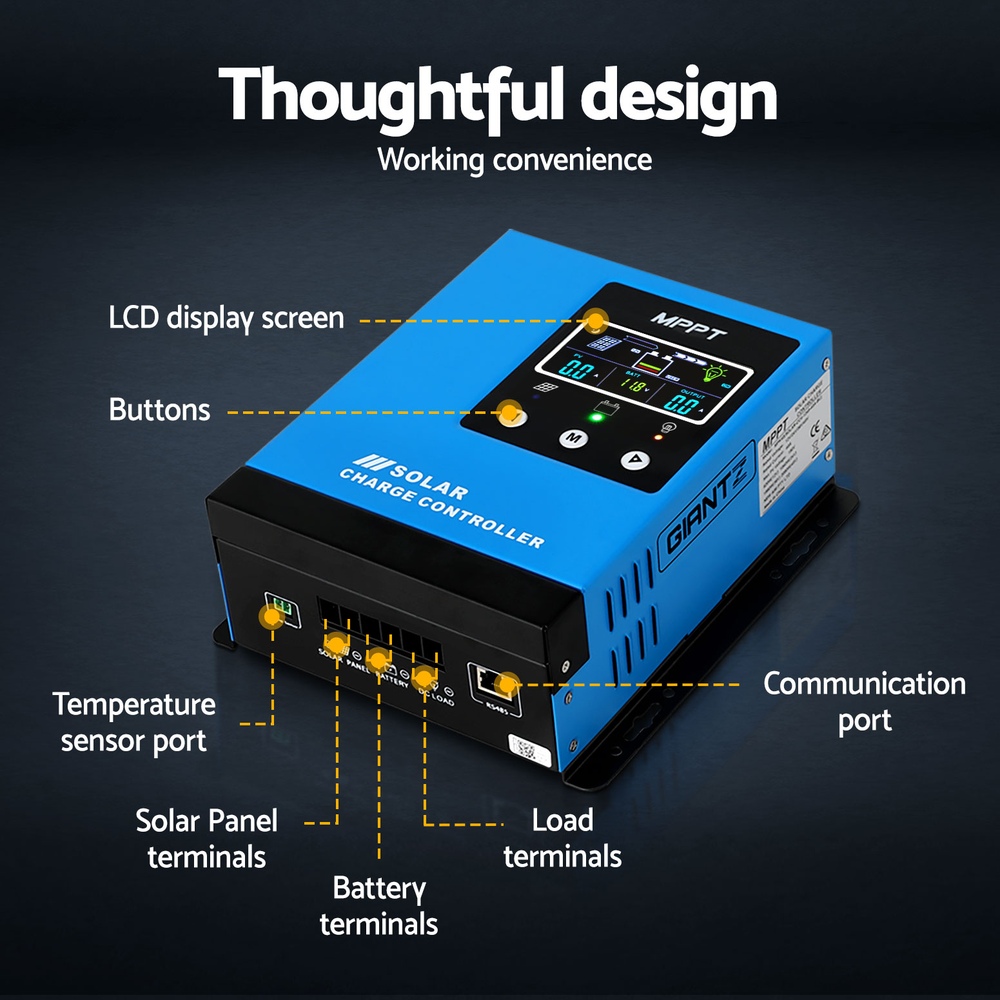

• Backlit LCD for easy monitoring

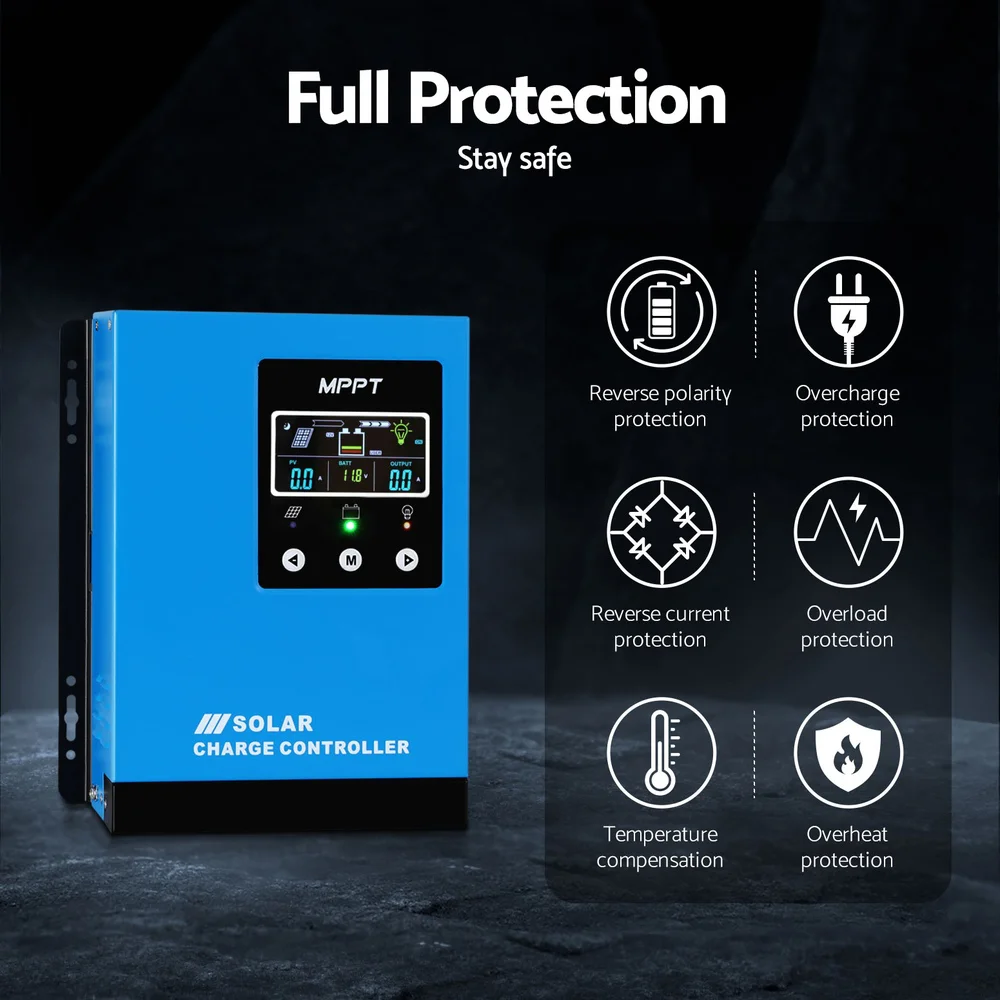

• Comprehensive protection: overcharge, reverse polarity, overload, overheating
• Cooling fan and iron case heat sink for heat distribution
• RS485 and RJ45 port communication modes
• Diverse load control options
• Compatible with GEL, SLD, FLD, USR, and Li batteries

Specifications

• Rated Charge Current: 60A
• Voltage: 12V/24V/36V/48V Auto
• Max. PV Input Power: 12V/780W, 24V/1560W, 36V/2340W, 48V/3120W
• Max. PV Input Voltage: 138V (at 25°C)
• Terminals: Up to 3 AWG
• Operating Temperature: -20°C to +55°C
• Storage Temperature: -20°C to +80°C
• Humidity: 10%-90% (No condensation)
• Weight: 3.05kg

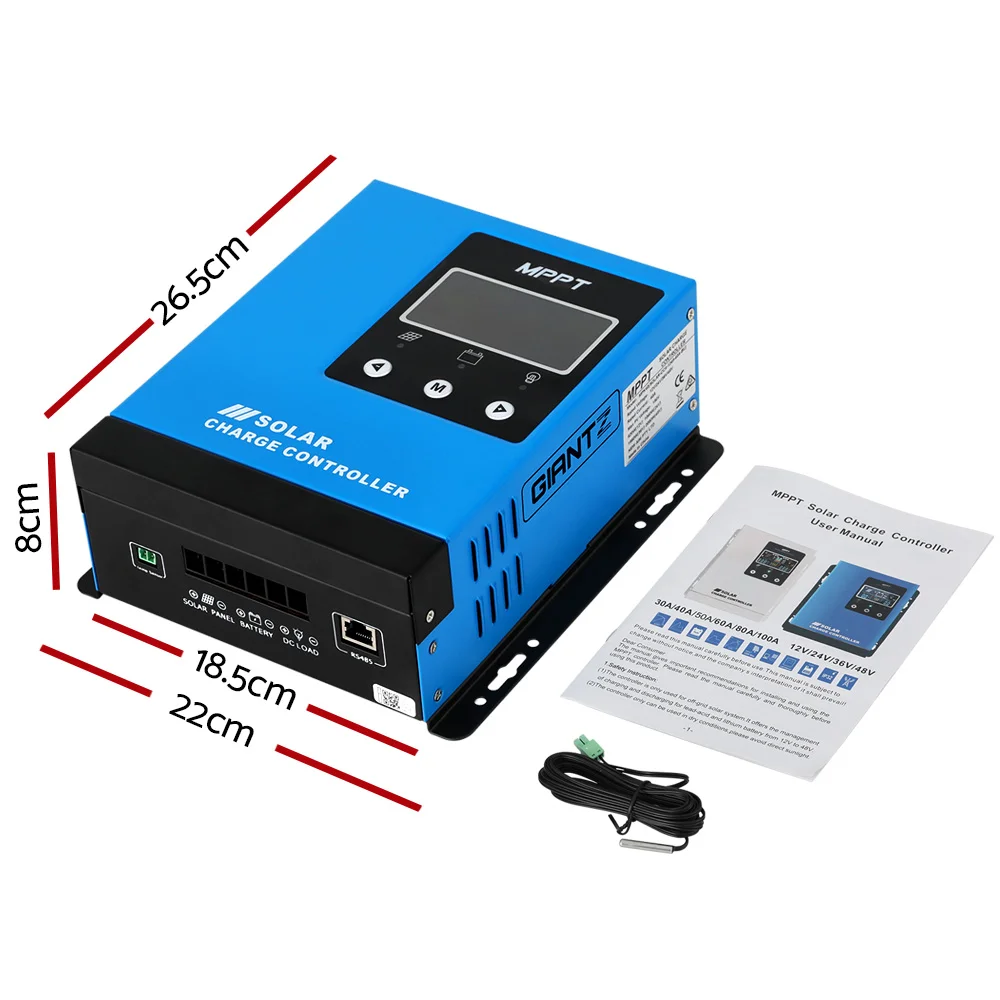

• Dimensions: 22cm x 8cm x 26.5cm (L x W x H)

Package Contents

• Giantz MPPT solar charge controller
• Temperature sensor
• Manual

Product Notes

• This product comes with 1 year warranty
• The actual colours may vary due to monitor colour depth and make.
